MPS4164 – Miniature Analog Pressure Scanner


Miniature Analog Pressure Scanner

Features and Specifications
***COMING SOON***

  • Analog version of the MPS4264
  • Direct legacy compatibility with the ZOC33 module
  • New valve design provides “isolate-purge”
  • On-board sensor excitiation
  • Unmatched sensor stability
  • “CPx” (65psi) or “NPx” (90psi) valve control
  • Up to 40kHz data output
  • 4″H20 up to 15psi pressure range

Application
MPS4164/64Px Miniature Analog Pressure Scanner (General, Wind Tunnel, Flight Test)
The MPS4164 is a unique 64 channel pressure scanner versatile enough to be used for many applications. It is the perfect choice where space is limited – such as wind tunnel models – where it is important to keep tubing length as short as possible. Significant improvements have been made in this next generation product with regard to accuracy when used in dynamic temperature environments. This makes the MPS an excellent choice for flight test or other demanding applications. Also available for the MPS is a Thermal Control Unit (MPSTCU) designed to protect the MPS in harsh environments and provide temperature control when the module may be subjected to extreme temperatures.

Overview
The MPS4000 series miniature pressure scanners have been designed from the ground up to be a ‘game changer’ in the world of multi-channel miniature pressure measurement. The MPS4164 scanner is built around a brand new ultra-stable pressure sensor. Scanivalve has worked directly with a leading pressure sensor manufacturer to develop a custom packaging solution that allows us to maximize the transducer’s stability and accuracy. One of the significant improvements over the legacy miniature pressure scanners is the new, maintenance free valve design. The valve can be ordered in different configurations; “Normal” (NPx) and “Standard” (CPx). The normal (NPx) version of the valve defaults to the measurement mode and eliminates the need for any control pressure source except when changing the module state into Calibration / Purge mode. This can greatly simplify the system architecture and eliminate the need for multiple valves and a constant source of ‘muscle’ pressure. The alternate configuration, standard or CPx, was designed to allow the MPS scanner to be incorporated into an analog architecture. This allows the MPS modules to be installed alongside legacy products which require control pressure to switch the module into Measurement, and another control pressure to switch the module into Calibration / Purge mode.

Photos

(Click photo to enlarge)

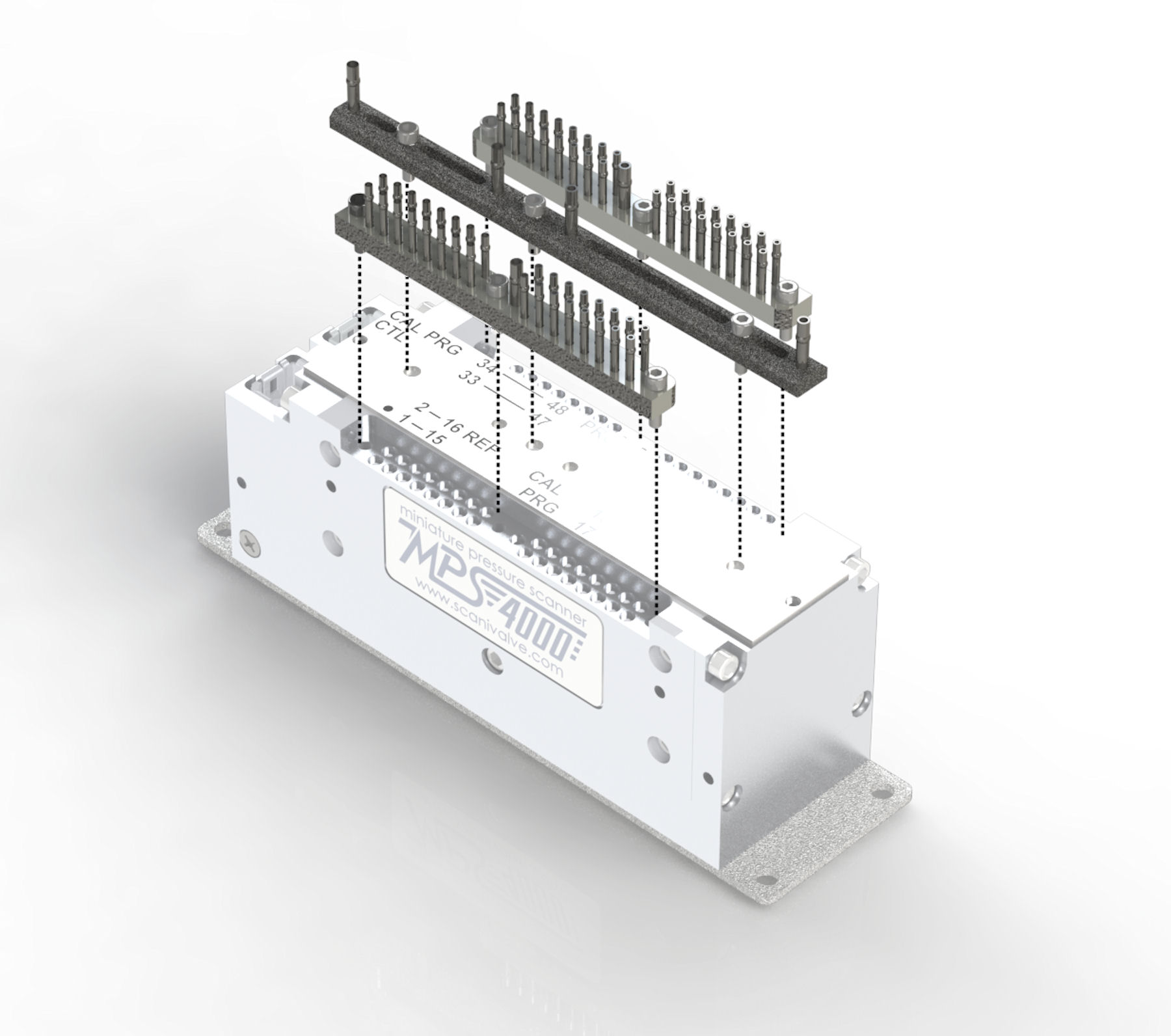

MPS4164_01MPS4164_11MPS4164_12valveexplodedview-3-3mountingplateoptions-4removableheaders-5

Downloads – Available Soon

  • MPS4164 Hardware & Software Manual pdf (MB)
  • MPS4164 Data Sheet pdf (MB)
  • MPS4164 CPx 3D Models pdf (MB)
  • MPS Accessory Sheet pdf (MB)
  • MPS4164 Sales Drawingpdf (620 KB)
