Features and Specifications

• Supports up to 5 MPS or ES4000 modules
• 90-240 Vac, 50-60Hz
• Serial and Trigger connections on rear panel

Application

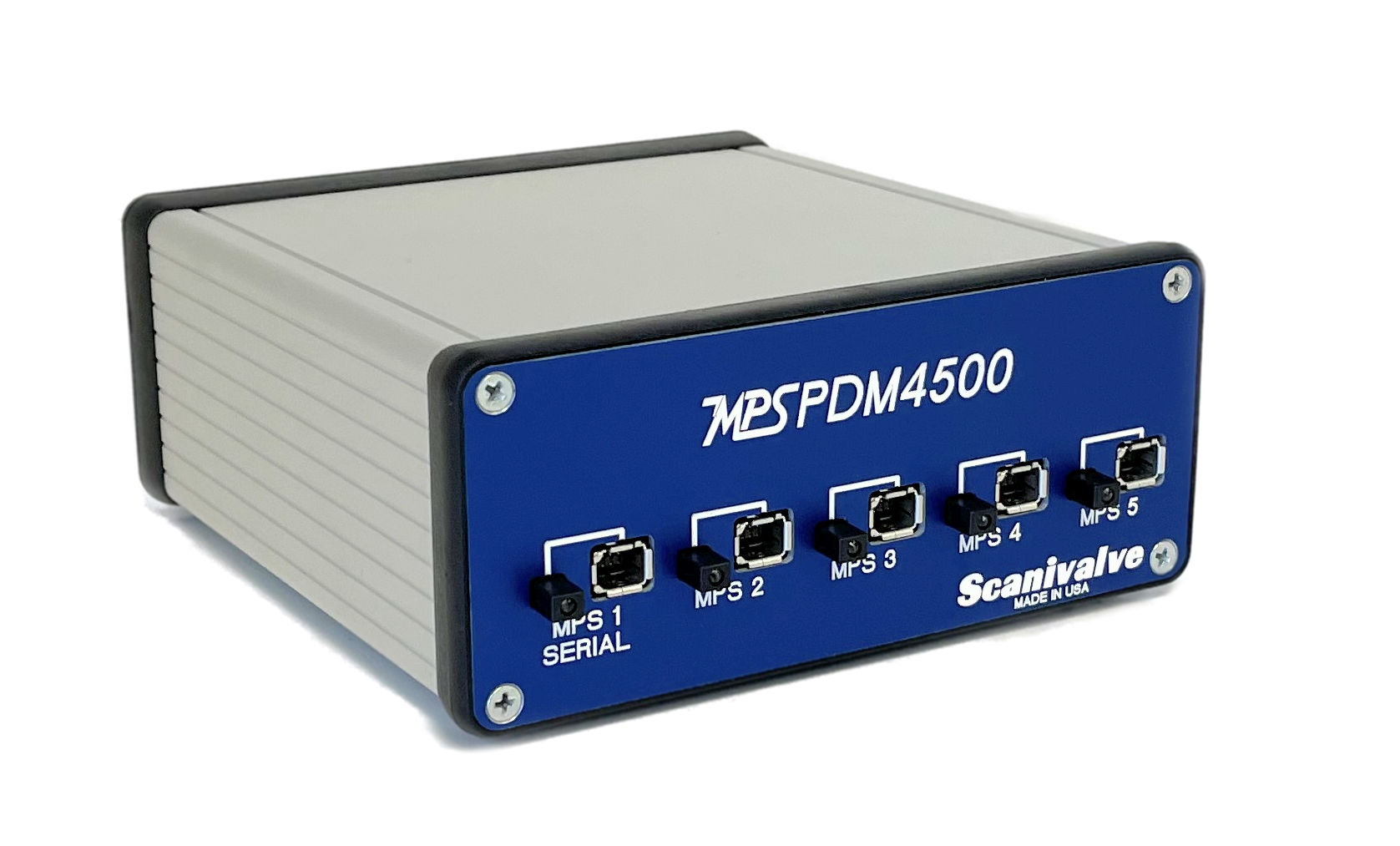

The five port MPSPDM4500 power supply allows for multiple MPS modules or the ES4000 to be powered by a single supply. This makes powering the modules convenient whether on the workbench, in the wind tunnel, or during flight test.

Overview

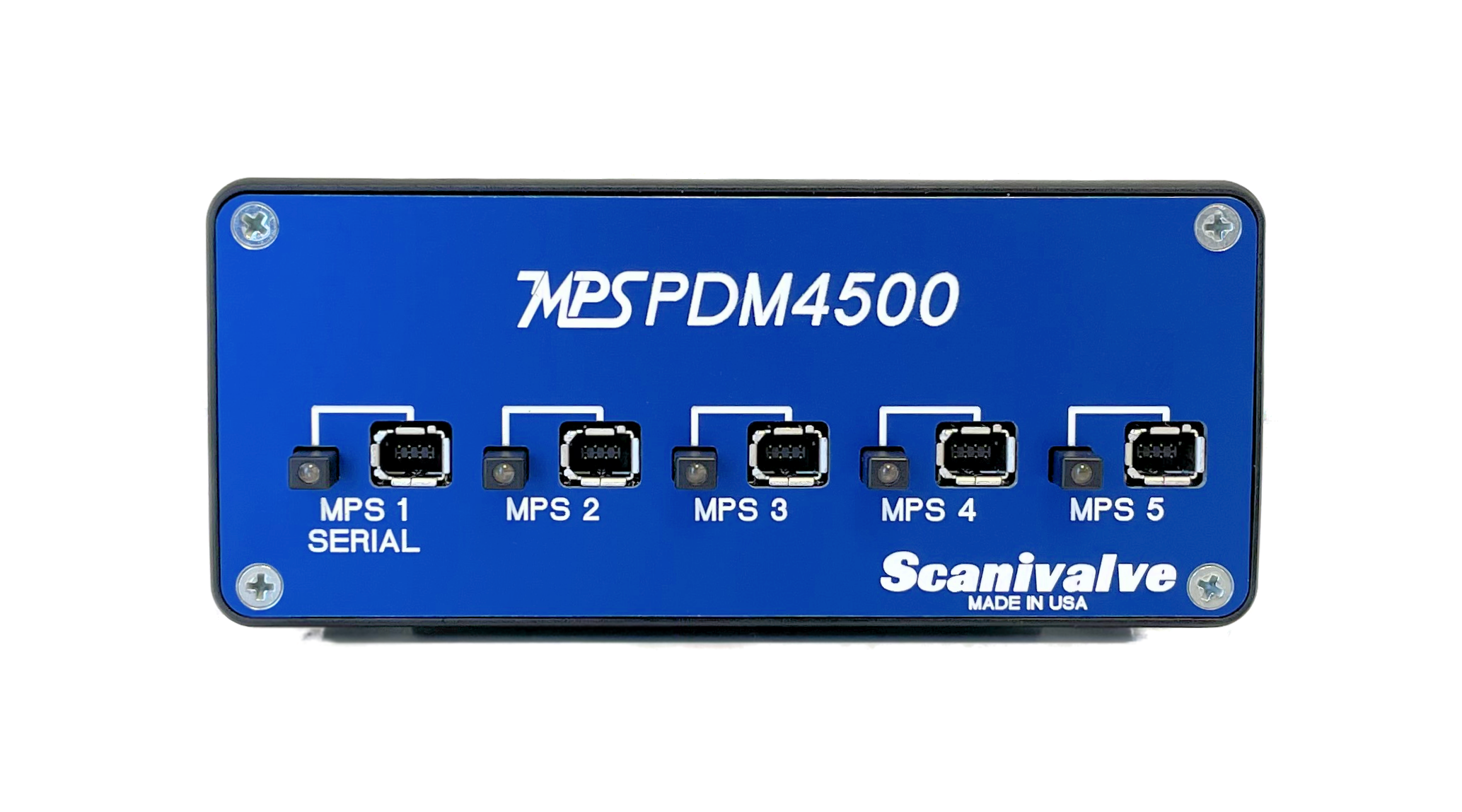

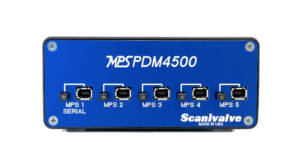

The five port MPSPDM4500 power supply allows for up to five MPS modules or the ES4000 to be be powered by a single supply. This is a convenient way to provide the 9-36Vdc to power multiple MPS modules.

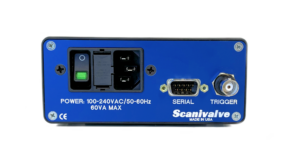

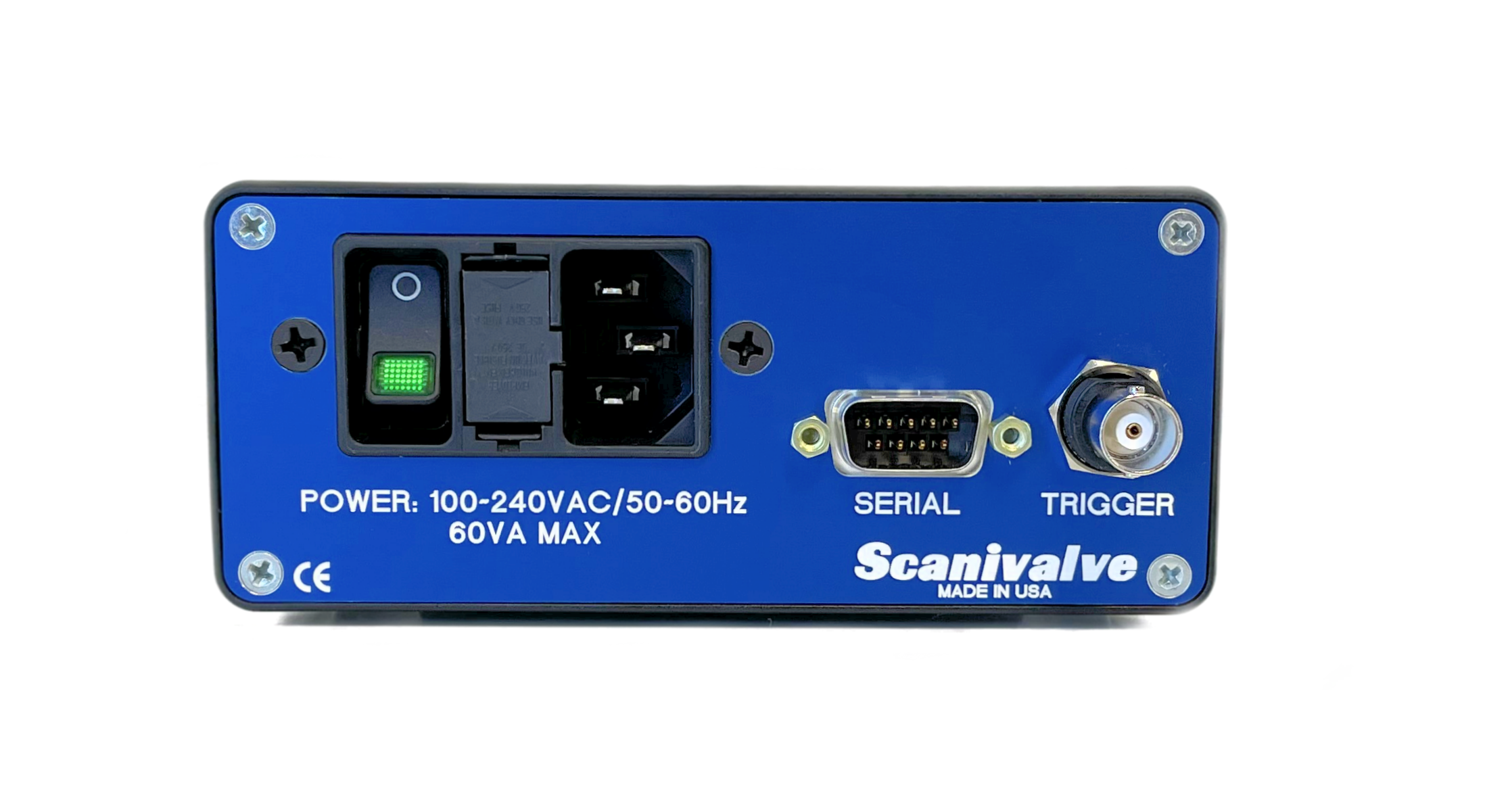

The MPSPDM4500 also provides some additional functionality in the form of a serial connection and an BNC trigger input.  A standard RS232 serial connection is supplied on the back of the MPSPDM4500 allowing the user to establish a serial connection with the MPS unit powered by the #1 position.  This is useful if for any reason an Ethernet connection cannot be established with the MPS.  The BNC connection allows users to supply a trigger input to the system, easily synchronizing all 5 MPS scanners.
