Features and Specifications

• 5/16″ – 24 SAE male thread to popular tubing connections (tubulation, compression, quick-coupler)
• Tubulation sizes include 0.042″, 0.063″, and 0.125″
• Compression sizes of 1/16″ or 1/8″
• Quick coupler allows for a smooth TUBN-063 to be inserted
• Can be ordered as individuals, or in packs of 22 or 36

Overview

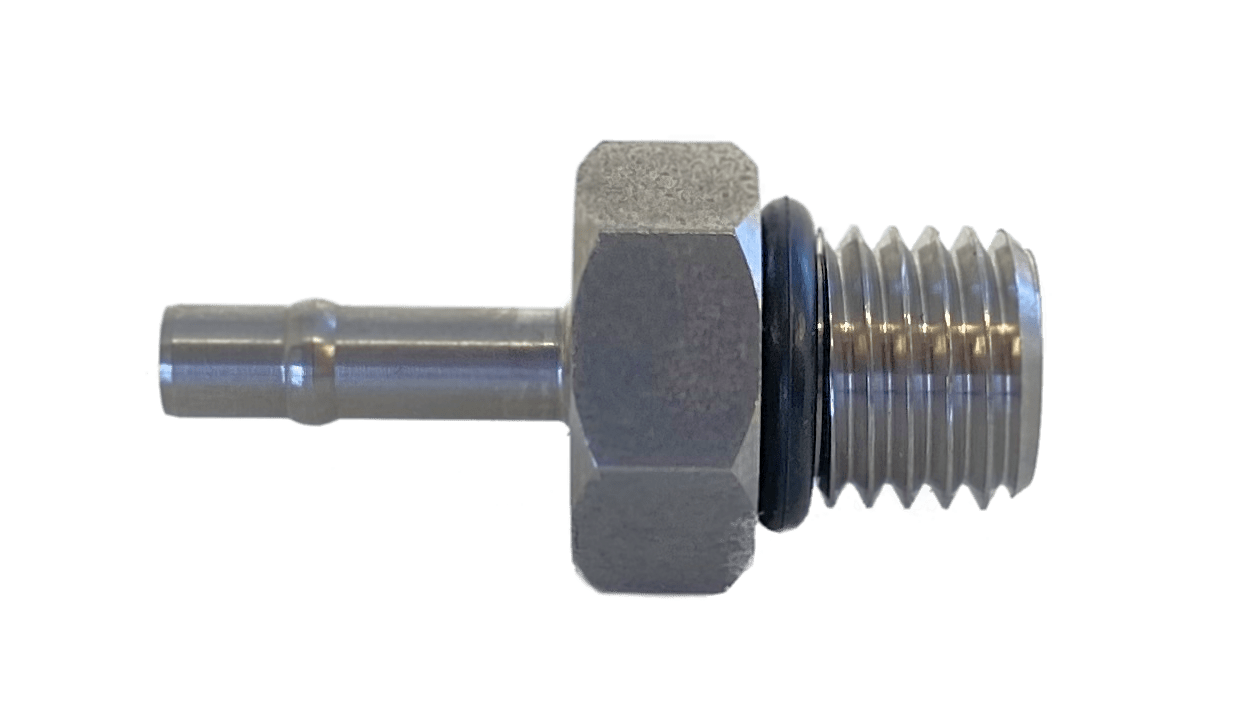

These adaptors were designed to adapt a 5/16″ – 24 male thread matching SAE J1926-1* standard to a common Scanivalve fitting type. Stainless steel tubulations, compression fittings, and an 063 quick coupler are available. All fittings are stainless steel with an included o-ring.

For ordering information and details, please see the Pneumatic Accessory Catalog.

Downloads

• • Scanivalve Accessory Catalog (8 MB)
