MPSTCU Breakout Box

Features and Specifications

  • For use with MPS4264TCU scanners
  • Breaks out the M12 connector to power, Ethernet, and trigger
  • Mounting provisions included

Application

The MPSTCU Breakout Box allows users of the MPS4264TCU a simple means to connect Ethernet, trigger, and module/heater power to the MPS4264TCU. The breakout box provides three easy connections for the power, Ethernet and trigger.

The MPS4264TCU Breakout Box power connector is compatible with Scanivalve PDM1500/3200 and PDM5001/5004 power supplies, using the standard 3-pin Mil-Spec power connection, common to other Scanivalve power inputs.
Ethernet connector accepts a standard RJ-45 patch cable for simple integration into any standard network.
Trigger input is a simple BNC connector (center positive).

Example MPSTCU architectures (with and without the MPSTCU Breakout box) can be found in the Examples Drawing under the downloads section.

main_ul_liHow to Buymain_ul_liTalk to an Engineer

Photos

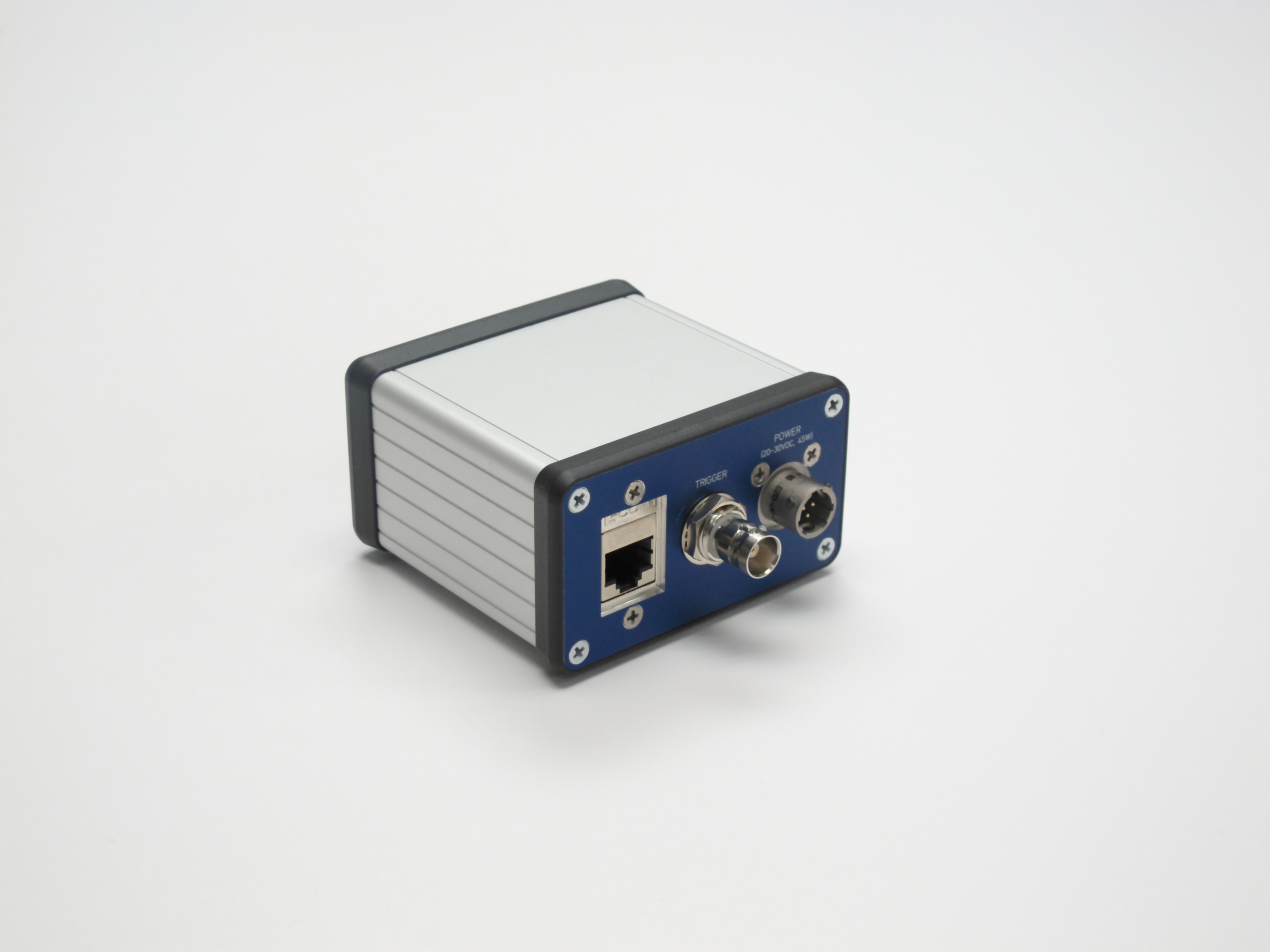

MPSTCU Breakout Box

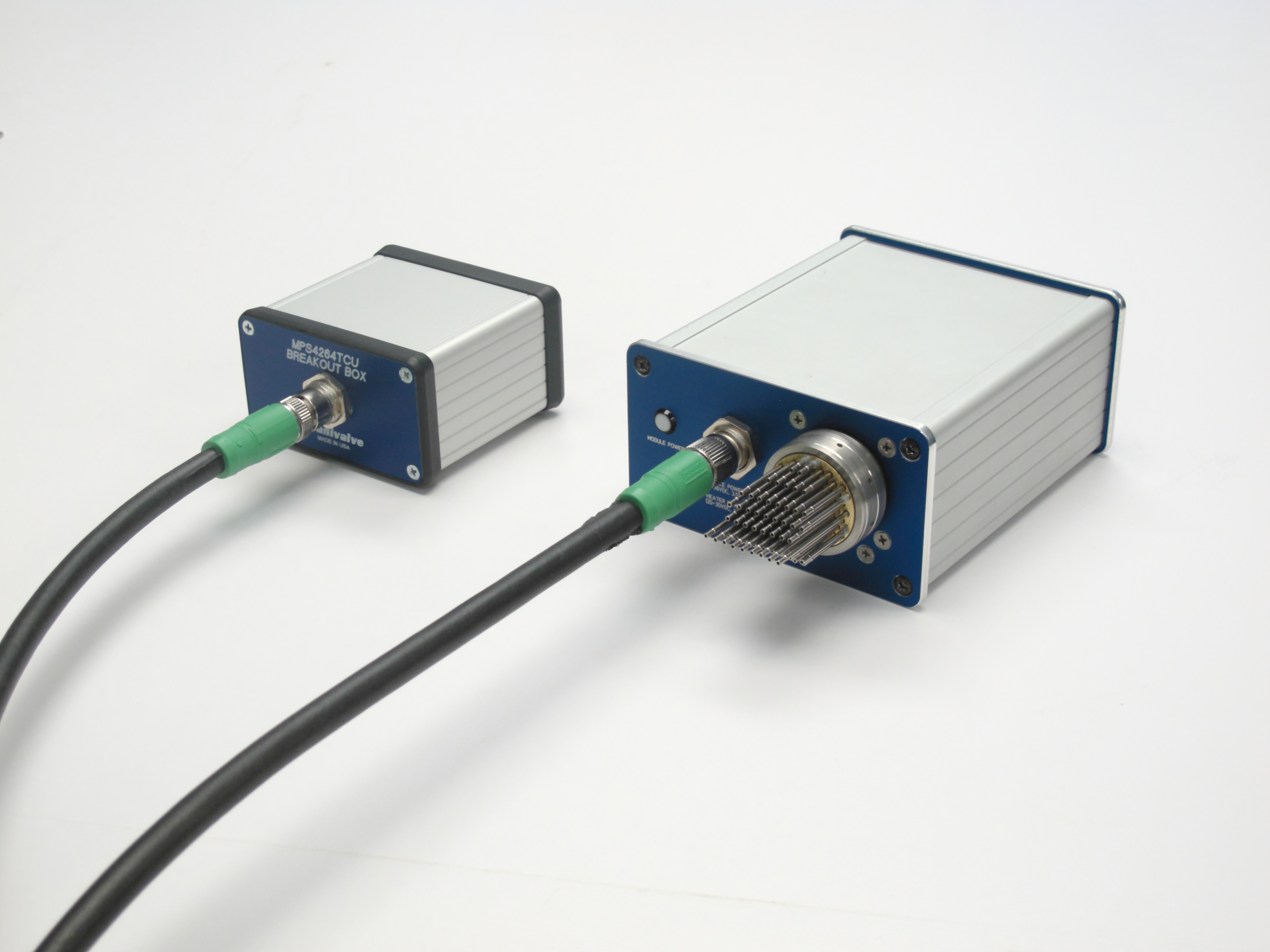

Rear View

(Click photo to enlarge)
