Features and Specifications

• Exact size dimensionally as the real MPS4200 scanners
• All mounting holes are the same
• Allows standard Px and Control Headers to be installed
• O-ring seal of the Px headers allows leak tests to be performed
• Cutouts for electrical connectors
• Headers not included

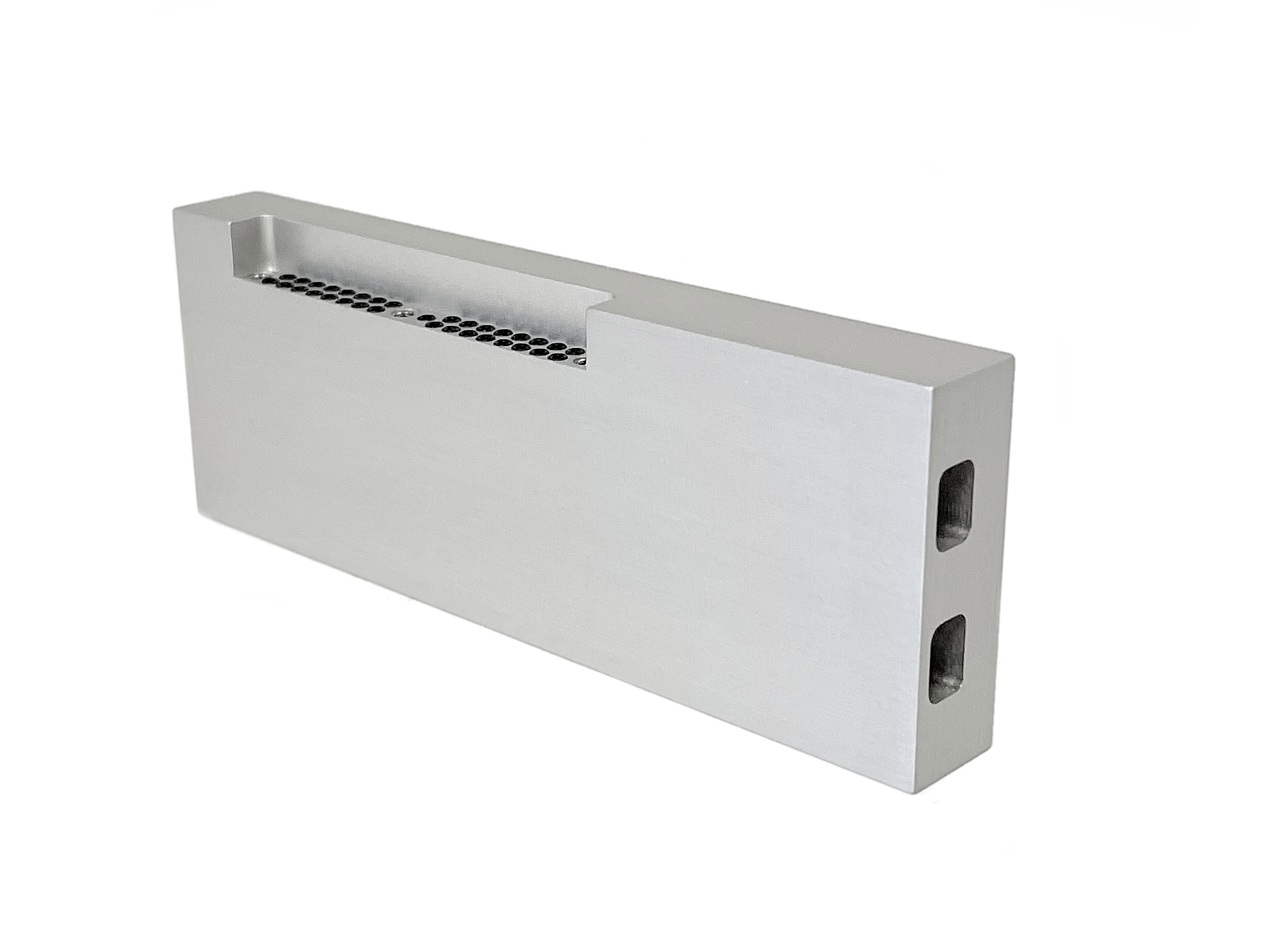

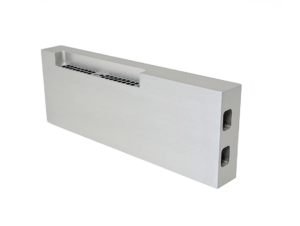

Overview

Sending your scanner to a model shop when your scanner is to be used inside of a model may cause significant downtime for your scanner or system. Rather than have your testing come to a halt, the MPS Plumbing Dummy can be sent to facilitate plumbing and mounting of a scanner inside the model. When the model returns, simply exchange the headers from the dummy to the real scanner. Pre-plumbed headers can be installed onto the plumbing dummy and used as a way to leak test the tubes plumbed from the model.

Plumbing dummies are available for MPS4264 CPx and NPx, EPx, MPS4232 and MPS4216.

Note: these are not designed to be used for MPSTCU installations.
