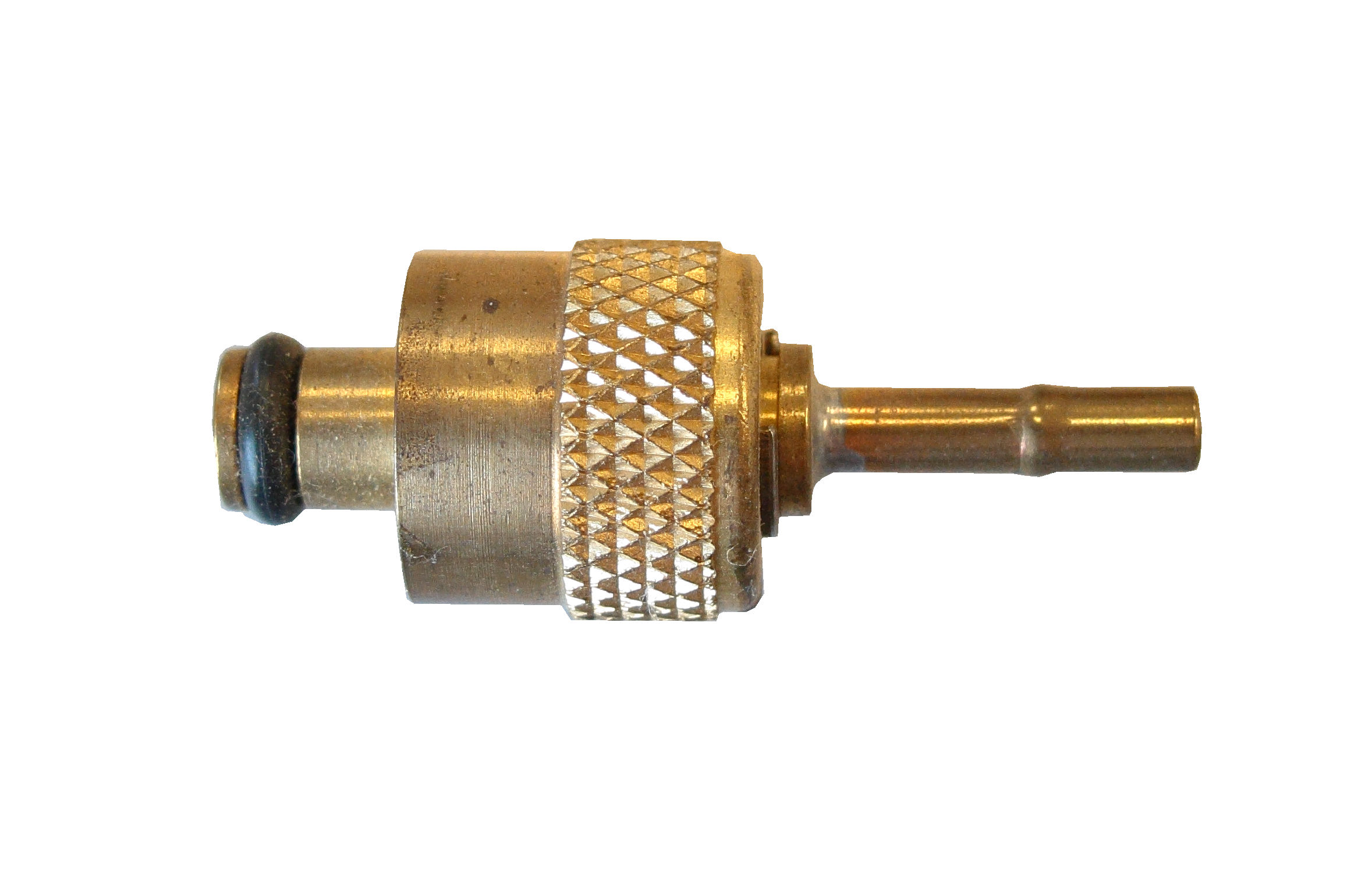

X-Lok Compression Fitting Tube Adaptors


Tube Adaptors for X-Lok Compression Fittings

Features and Specifications

  • Seals on an O-ring
  • Can be hand tightened- No tools required!
  • Fits 1/8 inch or 1/4 inch X-Lok compression fitting
  • Available tubulation sizes for 1/4 fittings: .040, .063, .083, and .125 inch
  • Available tubulation sizes for 1/8 fittings: .040, .063, and .125 inch
  • Caps are available for both fittings sizes.

Application

These tube adapters are extremely useful when making pneumatic connections many times. Standard compression fittings distort a ferrule when making a seal and cannot be used more than once, where the Scanivalve adapters seal on an O-ring. They are also ideal in areas where it may be difficult to get a wrench around the compression fitting.

The function of these adapters is to reduce 1/8 or 1/4 inch input compression fittings to 1/16 or 1/8 inch tubulations. These fittings can be hand tightened to form a leak tight O-ring seal without the use of tools. The tube adapter material is brass, with 1/16 or 1/8 inch steel tubulations. They can be used up to 750 psi.

To close off compression fittings, a cap is also available.

Overview

Scanivalve has designed easy-to-use tube adapters that fit X-Lok fittings.  The function of these adapters is to reduce 1/8 or 1/4 inch input fittings to 1/16 or 1/8 inch tubulations.  These fittings can be hand tightened to form a leak tight O-ring seal without the use of tools.  The tube adapter material is brass, with 1/16 or 1/8 inch steel tubulations.
