Tube Connectors X,T,I,R & P


TC xxx-x  Tube Connectors

Features and Specifications

  • Available sizes: .031(no bulge), .040,.063,.& .125 tubulations
  • Available colors: CLR (clear), GLD (gold), BLK (black), RED, GRN (green), and BLU (blue)
  • Available designs: X,T,I,R,& P

Application

The tube connectors are made by cementing stainless steel tubulations into color coded anodized aluminum blocks. The anodized color can aid in the installation of tubing. When no color is specified, Scanivalve will supply a color based on availability.  All tubulations are bulged except for the .031 and .250 sizes. When used in a high vibration area or when making and breaking connections multiple times, you may want to consider the same designs only utilizing a brass body with the steel turbulations silver soldered into the brass. This can also be used when an extra safety factor is required to insure no leaks due to handling.

Photos

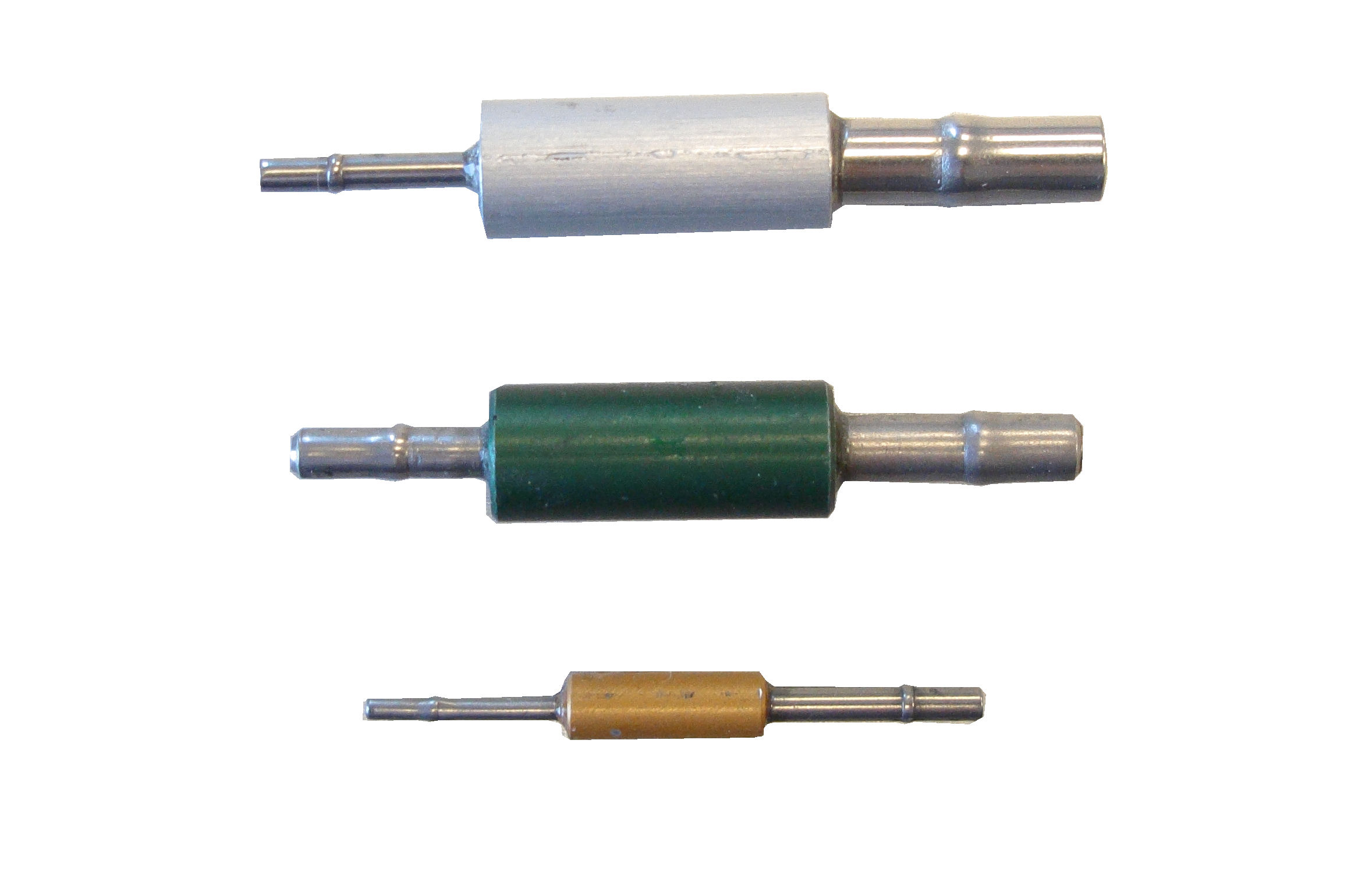

tc2(Click photo to enlarge)
