Plastic Tubing

Features and Specifications:

Available sizes:

Vinyl: 0.040 in (1.02mm), 0.063 in (1.59mm), 0.125 in (3.18mm)
Urethane: 0.031 in (0.79mm) 0.040 in (1.02mm), 0.063 in (1.59mm)
Nylon: 0.063 in (1.59mm), 0.125HW in (3.18mm), 0.063 in 19-port multi-Tube bundle*
Teflon: 0.040 in (1.02mm), 0.063 in (1.59mm), 0.125 in (3.18mm)

Application
Vinyl Tubing – Low pressure tubing rated 90 psi at 21°C for .063 tubing size. Temperature rating of °65 C. For more sizes and specifications, please see the Plastic Tubing and Specifications chart in the Downloads section.

Urethane Tubing – Low pressure tubing rated 100 psi at 21°C for .063 tubing size. Best tubing for wind tunnel models due to its ability to be flexible around sharp corners without kinking. Temperature rating 95 °C. For more sizes and specifications, please see the Plastic Tubing and Specifications chart in the Downloads section.

Nylon Tubing – General purpose tubing rated at 1000 psi at 21°C for .063 tubing size. Ideal for gas turbine testing, flight tests, etc. Temperature rating of 110 °C

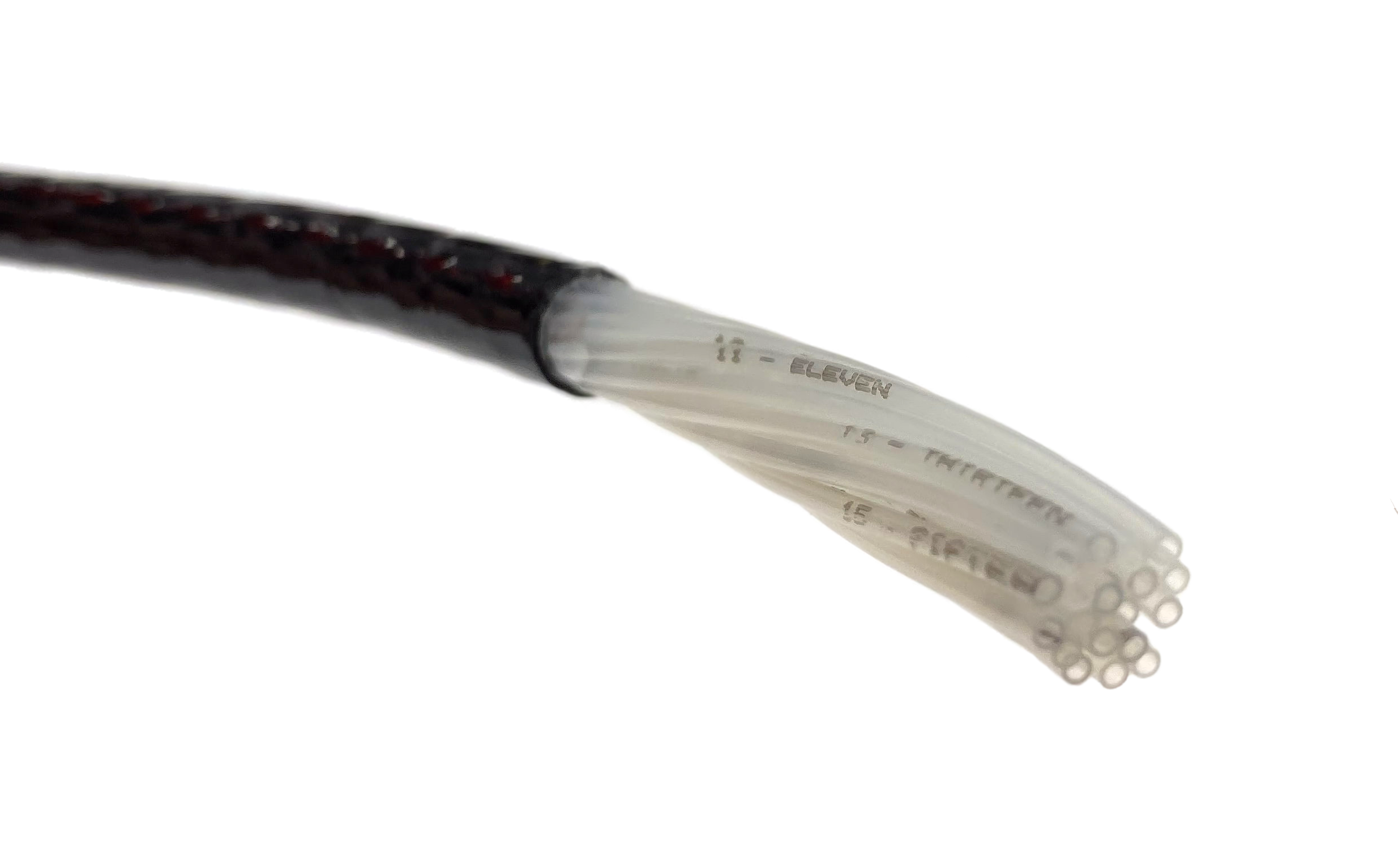

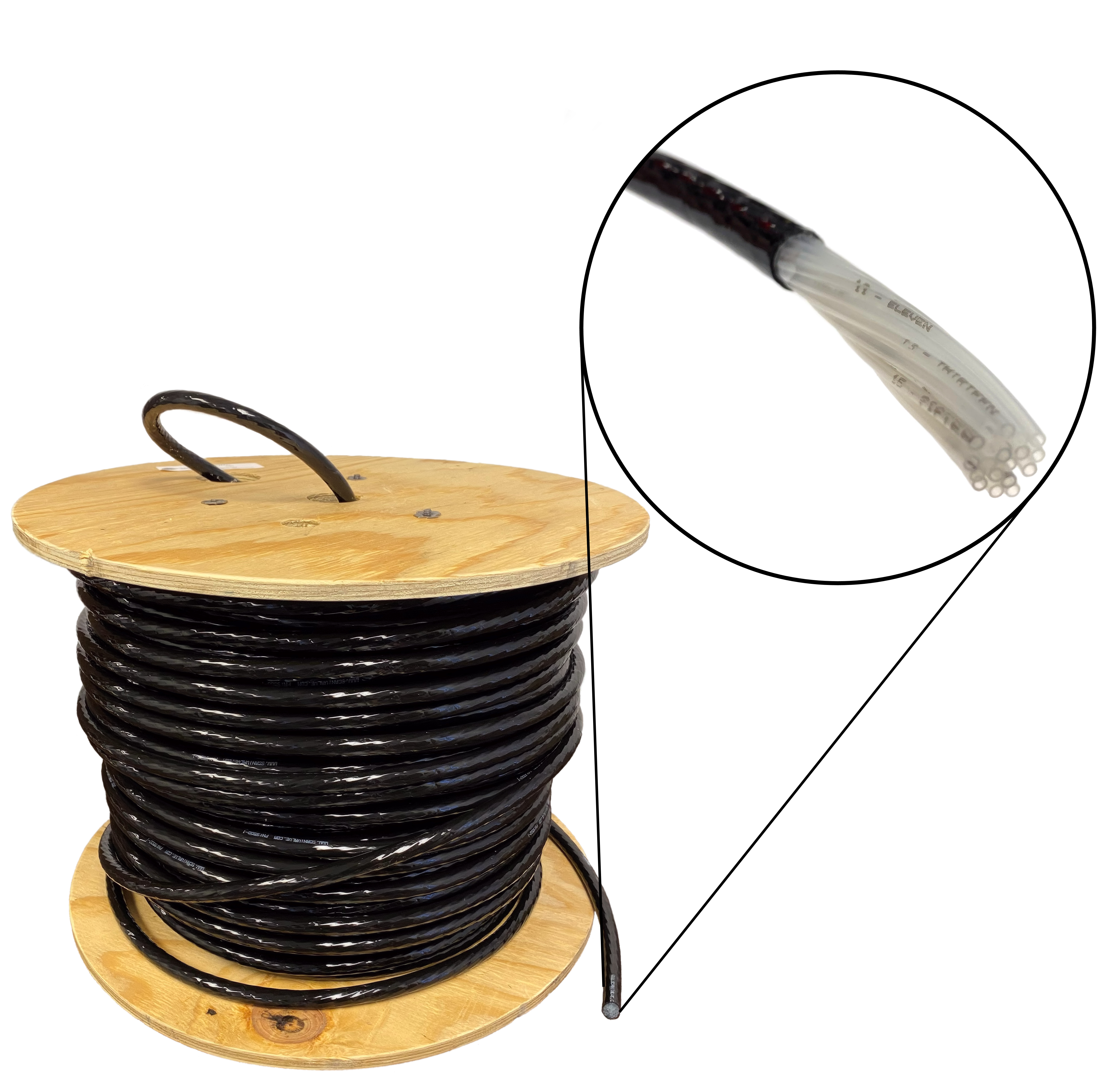

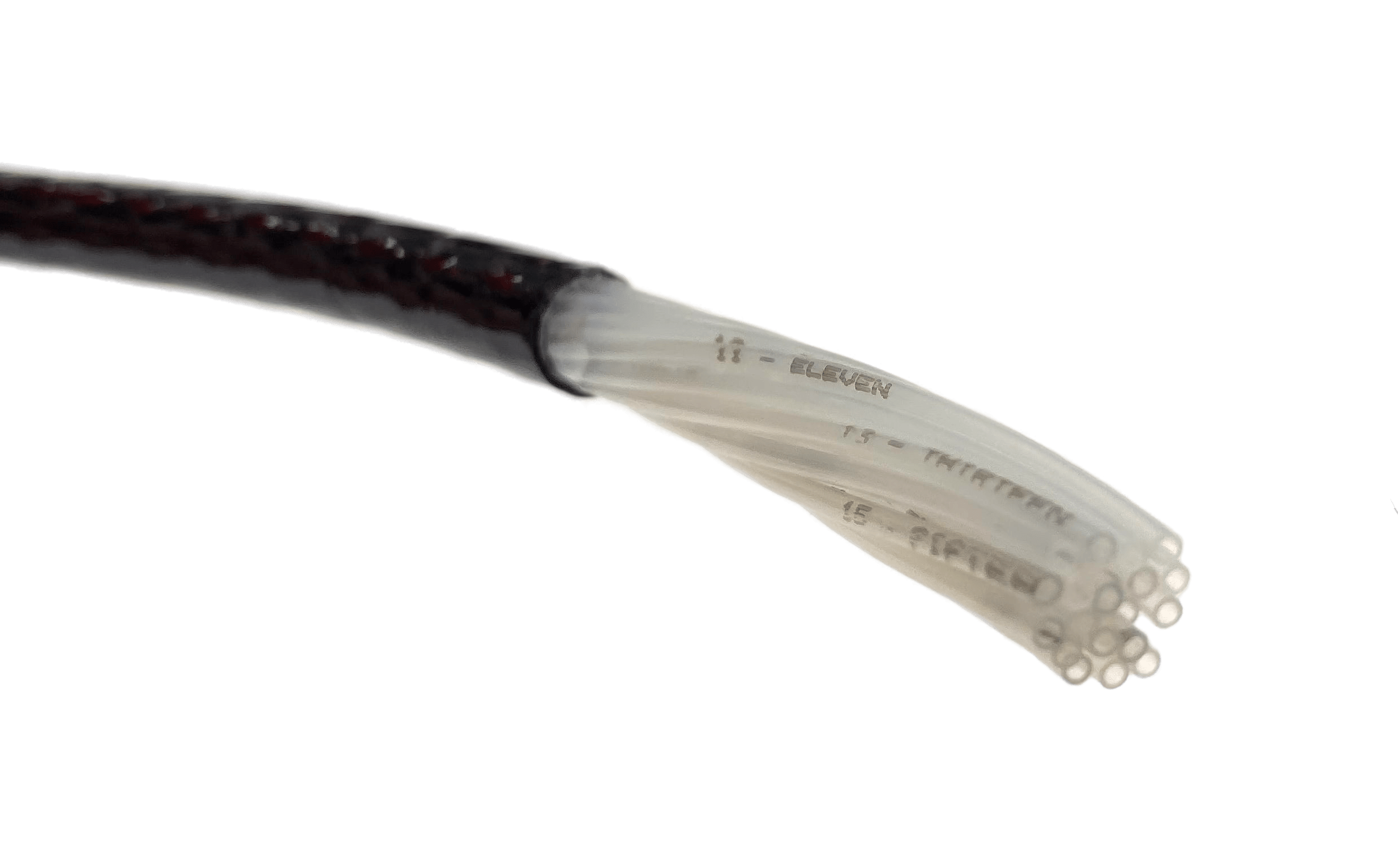

Nylon tubing is now available in a Multi-Tube bundle. 19 strands of Nylon 063 tubing are contained within a polyurethane jacket. Each of the 19 tubes are labeled with port numbers to allow for easy identification. The multi-tube bundle is available in spools of approximately 450ft. Please contact Scanivalve or view the sales drawing under the downloads section for more information.

Teflon Tubing – Chemically inert tubing rated at 500 psi at 21°C for .063 tubing size. Maximum temperature rating is 260 °C. For more sizes and specifications, please see the Plastic Tubing and Specifications chart in the Pneumatic Accessory Catalog.
